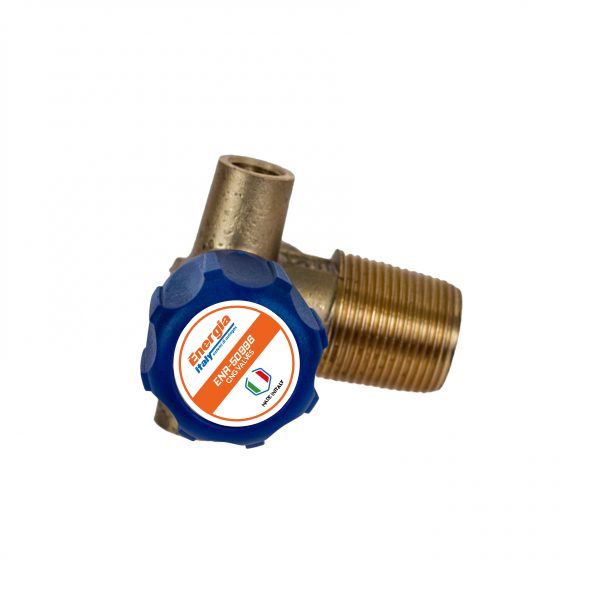

This relatively light CNG cylinder valve Energia Italy VM01 Light was equipped wit manual tap. It has also available versions with additional excess flow valve and thermo fuse T-PRD, which is very effective safety feature.
Energia Italy VM01 Light is also available in ARM version and EXTRA versions. VM01 light are homologated in accordance with the European Regulation ECE R110 and in compliance with the ISO15500 standards.
| Material | Hot forged brass |
| Weight | 0,35 kg |
| Max. pressure | 26.0 MPa |
| Hydraulic collapse pressure | >60 MPa |
| Working temperature | -40°C / 85°C |
| Min. area of gas flow | 12.6 mm² |
| Tightening torque at 26 Mpa | 3 ± 0.5 NM |
| Opening/closing angle | 900° (±45°) |
| Pipe connection | M12x1 or 1/8” NPT |
| T-PRD activation temperature | +108°C ± 6°C |
| PRD Min. area of gas flow | 28.3 mm² |
| T-PRD activation time | 10 sec. |
| Burst disc Min. area of gas flow | 33.2 mm² |
Warranty
12 months warranty.
